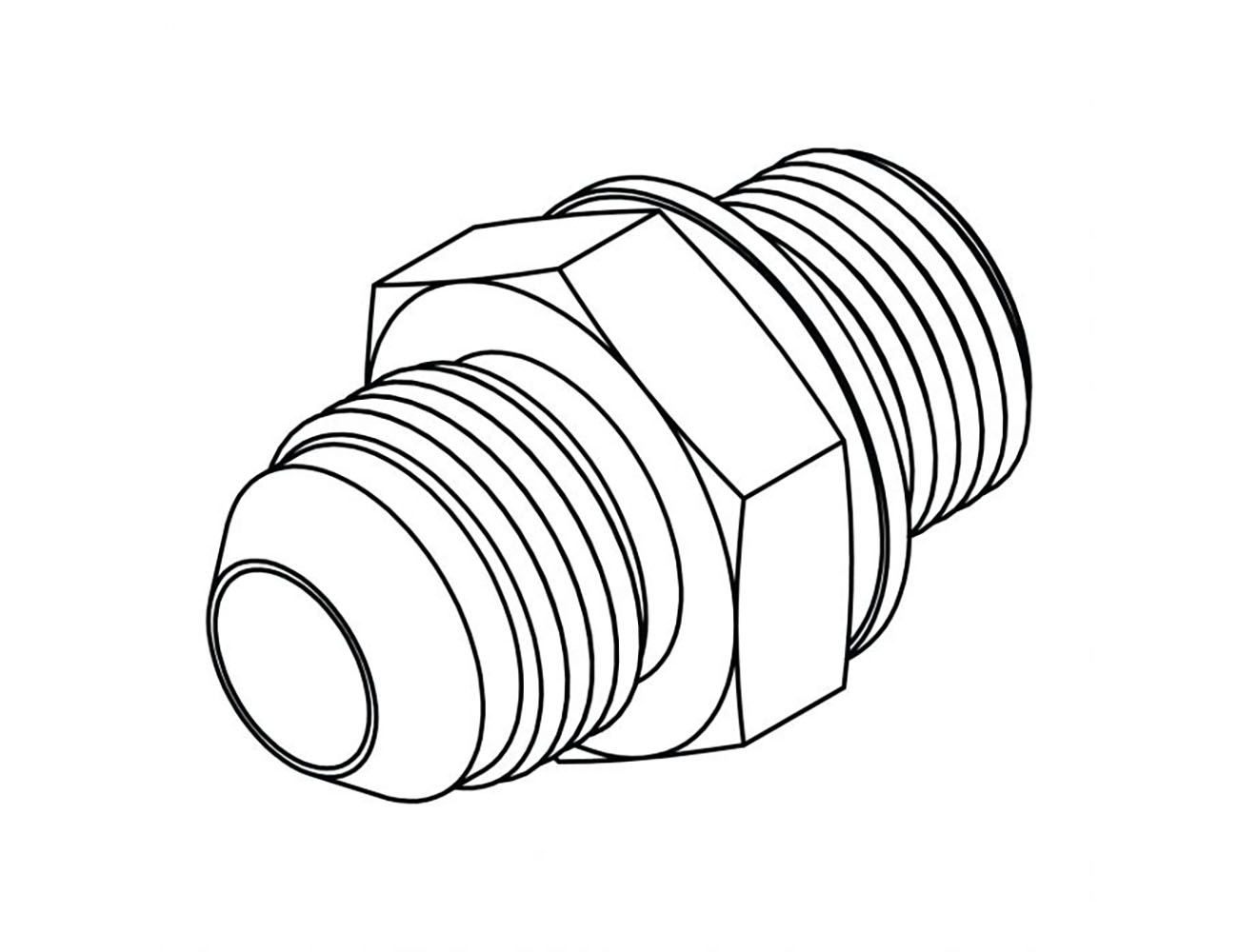

Home Page7005-S Series
Need Help with the installation?
Learn technical details.
MJ-MM Heavy Metric
| Item Number | HH Item Number | Tube OD | Male JIC | Male Metric |
|---|---|---|---|---|
| 7005-04-S06-14 | 4MJ-14MM-S6x1.5 | 1/4 | 7/16-20 | 14 x 1.5 |
| 7005-04-S08-16 | 4MJ-16MM-S8x1.5 | 1/4 | 7/16-20 | 16 x 1.5 |
| 7005-06-S08-16 | 6MJ-16MM-S8x1.5 | 3/8 | 9/16-18 | 16 x 1.5 |
| 7005-06-S10-18 | 6MJ-18MM-S10x1.5 | 3/8 | 9/16-18 | 18 x 1.5 |
| 7005-06-S12-20 | 6MJ-20MM-S12x1.5 | 3/8 | 9/16-18 | 20 x 1.5 |
| 7005-08-S10-18 | 8MJ-18MM-S10x1.5 | 1/2 | 3/4-16 | 18 x 1.5 |
| 7005-08-S12-20 | 8MJ-20MM-S12x1.5 | 1/2 | 3/4-16 | 20 x 1.5 |
| 7005-08-S14-22 | 8MJ-22MM-S14x1.5 | 1/2 | 3/4-16 | 22 x 1.5 |
| 7005-10-S12-20 | 10MJ-20MM-S12x1.5 | 5/8 | 7/8-14 | 20 x 1.5 |
| 7005-10-S16-24 | 10MJ-24MM-S16x1.5 | 5/8 | 7/8-14 | 24 x 1.5 |
| 7005-12-S16-24 | 12MJ-24MM-S16x1.5 | 3/4 | 1 1/16-12 | 24 x 1.5 |
| 7005-12-S20-30 | 12MJ-30MM-S20x1.5 | 3/4 | 1 1/16-12 | 30 x 1.5 |
| 7005-12-S25-36 | 12MJ-36MM-S25x2.0 | 3/4 | 1 1/16-12 | 36 x 2.0 |
| 7005-16-S30-42 | 16MJ-42MM-S30x2.0 | 1 | 1 5/16-12 | 42 x 2.0 |
| 7005-20-S38-52 | 20MJ-52MM-S38x2.0 | 1 1/4 | 1 5/8-12 | 52 x 2.0 |
| 7005-24-S38-52 | 24MJ-52MM-S38x2.0 | 1 1/2 | 1 7/8-12 | 52 x 2.0 |
