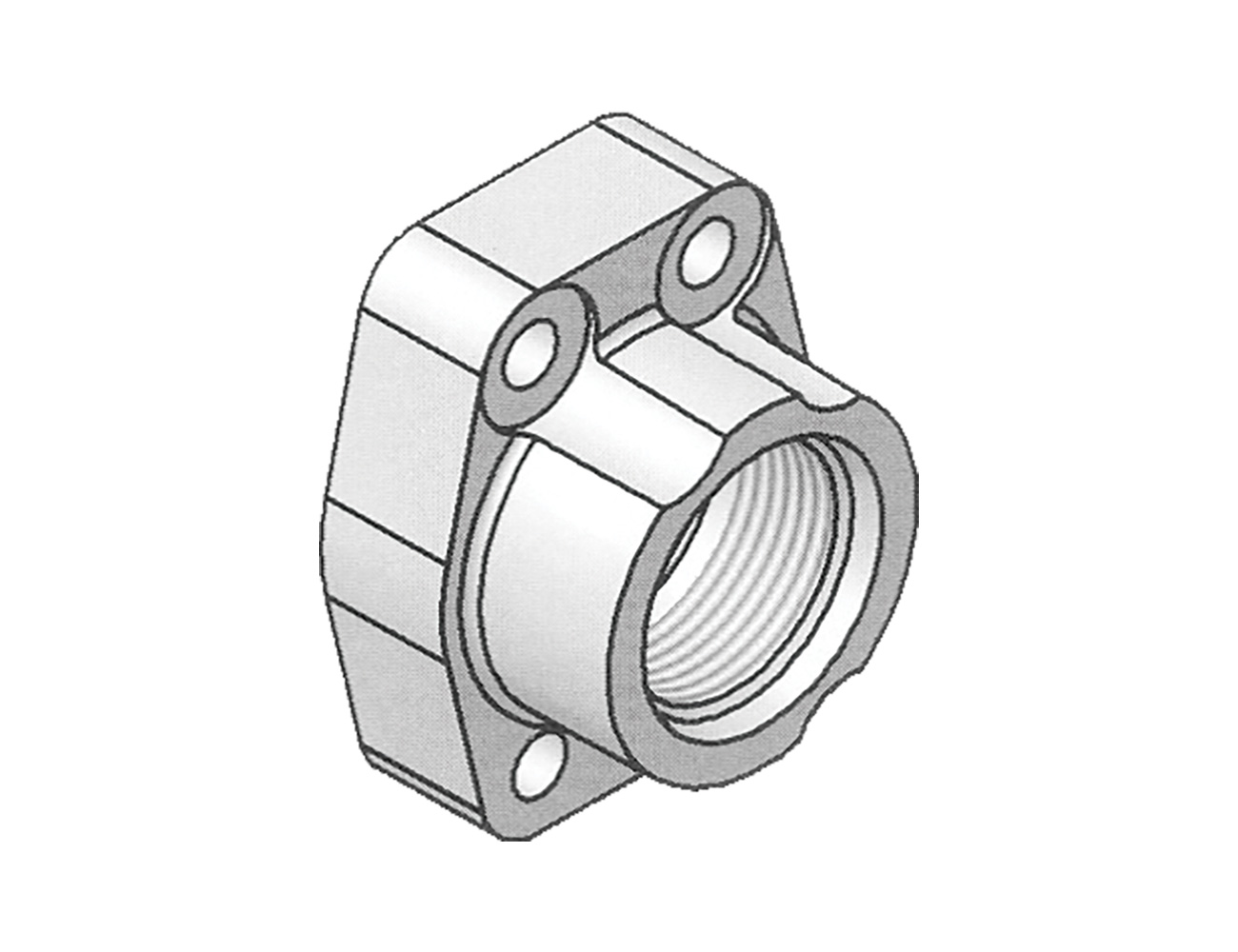

Code 61 SAE Straight Thread
| HH O-Ring | HH Flat Face | Port Size | Pad Size | A | B | C | D | E | F | G | H | J UN/UNF | K | L UNC | Mounting Hardware O-Ring SHCS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W46-08-08 | W106-08-08 | 0.500 | 0.500 | 1.810 | 2.130 | 0.688 | 1.500 | 1.420 | 0.630 | 1.000 | 0.502 | 3/4-16 | 0.344 | 5/16-18 | 210 5/16-18x1.25 |
| W46-12-12 | W106-12-12 | 0.750 | 0.750 | 1.970 | 2.560 | 0.875 | 1.875 | 1.420 | 0.710 | 1.250 | 0.752 | 1 1/16-12 | 0.406 | 3/8-16 | 214 3/8-16x1.50 |
| W46-16-16 | W106-16-16 | 1.000 | 1.000 | 2.170 | 2.750 | 1.031 | 2.062 | 1.500 | 0.710 | 1.560 | 1.002 | 1 5/16-12 | 0.406 | 3/8-16 | 219 3/8-16x1.50 |
| W46-20-20 | W106-20-20 | 1.250 | 1.250 | 2.680 | 3.120 | 1.188 | 2.312 | 1.610 | 0.830 | 1.750 | 1.252 | 1 5/8-12 | 0.469 | 7/16-14 | 222 7/16-14x1.75 |
| W46-24-24 | W106-24-24 | 1.500 | 1.500 | 3.070 | 3.660 | 1.406 | 2.750 | 1.770 | 0.980 | 2.115 | 1.502 | 1 7/8-12 | 0.531 | 1/2-13 | 225 1/2-13x1.75 |
| W46-32-32 | W106-32-32 | 2.000 | 2.000 | 3.540 | 4.000 | 1.688 | 3.062 | 1.770 | 0.980 | 2.490 | 2.002 | 2 1/2-12 | 0.531 | 1/2-13 | 228 1/2-13x1.75 |
Code 62 SAE Straight Thread
| HH O-Ring | HH Flat Face | Port Size | Pad Size | A | B | C | D | E | F | G | H | J UN/UNF | K | L UNC | Mounting Hardware O-Ring SHCS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W48-08-08 | W49-08-08 | 0.500 | 0.500 | 1.810 | 2.210 | 0.718 | 1.594 | 1.420 | 0.630 | 1.000 | 0.502 | 3/4-16 | 0.344 | 5/16-18 | 210 5/16-18x1.25 |
| W48-12-12 | W49-12-12 | 0.750 | 0.750 | 2.170 | 2.800 | 0.937 | 2.000 | 1.380 | 0.830 | 1.250 | 0.752 | 1 1/16-12 | 0.406 | 3/8-16 | 214 3/8-16x1.50 |
| W48-16-16 | W49-16-16 | 1.000 | 1.000 | 2.560 | 3.190 | 1.093 | 2.250 | 1.650 | 0.980 | 1.560 | 1.002 | 1 5/16-12 | 0.492 | 7/16-14 | 219 7/16-14x1.75 |
| W48-20-20 | W49-20-20 | 1.250 | 1.250 | 3.070 | 3.750 | 1.250 | 2.625 | 1.770 | 1.060 | 1.750 | 1.252 | 1 5/8-12 | 0.531 | 1/2-13 | 222 1/2-13x1.75 |
| W48-24-24 | W49-24-24 | 1.500 | 1.500 | 3.700 | 4.410 | 1.437 | 3.125 | 1.970 | 1.180 | 2.115 | 1.502 | 1 7/8-12 | 0.656 | 5/8-11 | 225 5/8-11x2.25 |
| W48-32-32 | W49-32-32 | 2.000 | 2.000 | 4.500 | 5.280 | 1.750 | 3.812 | 2.560 | 1.460 | 2.490 | 2.002 | 2 1/2-12 | 0.781 | 3/4-10 | 228 3/4-10x2.75 |
