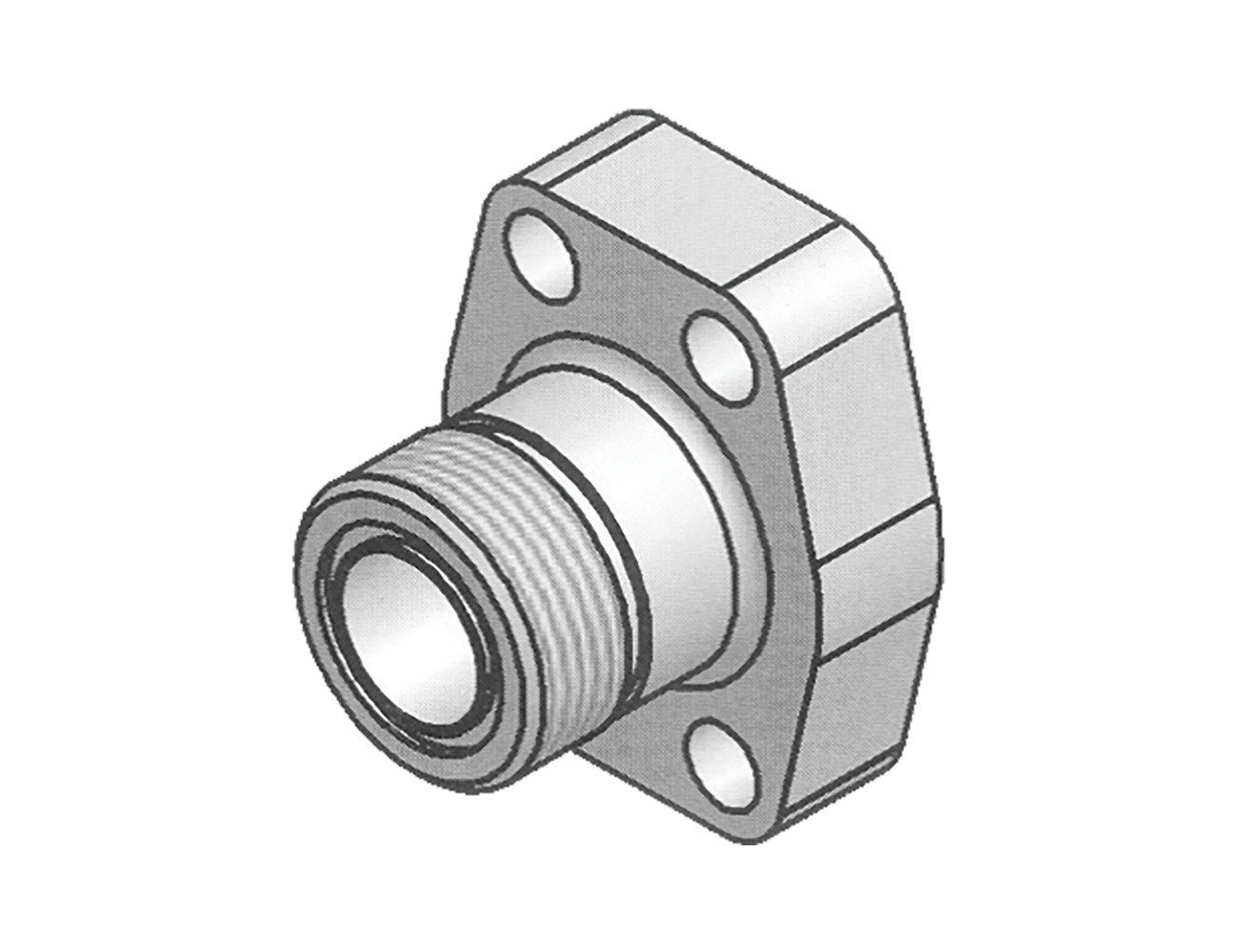

Male Thread (ORFS)

Code 61 Male ORFS

LUN HH Item Number Pad Size A B C D E F G H J K Mounting Hardware O-Ring SHCS
1 11/16-12 W304-20-20 1.250 2.680 3.120 1.188 2.312 2.250 0.830 1.750 1.024 0.689 0.469 222 7/16-14x1.75
1 3/16-12 W304-12-12 0.750 1.970 2.560 0.875 1.875 2.000 0.710 1.250 0.611 0.670 0.413 214 3/8-16x1.50
1 7/16-12 W304-16-16 1.000 2.170 2.750 1.031 2.062 2.000 0.710 1.560 0.811 0.689 0.413 219 3/8-16x1.50
13/16-16 W304-08-08 0.500 1.810 2.130 0.688 1.500 1.750 0.630 1.000 0.394 0.504 0.344 210 5/16-18x1.25
2-12 W304-24-24 1.500 3.070 3.660 1.406 2.750 2.500 0.980 2.115 1.260 0.689 0.531 225 1/2-13x2.00



Code 62 Male ORFS

LUN HH Item Number Pad Size A B C D E F G H J K Mounting Hardware O-Ring SHCS
1 11/16-12 W604-20-20 1.250 3.070 3.750 1.250 2.625 2.620 1.060 1.750 1.024 0.689 0.531 222 1/2-13x1.75
1 3/16-12 W604-12-12 0.750 2.170 2.800 0.937 2.000 2.250 0.830 1.250 0.611 0.670 0.413 214 3/8-16x1.50
1 7/16-12 W604-16-16 1.000 2.560 3.190 1.093 2.250 2.500 0.980 1.560 0.811 0.689 0.492 219 7/16-14x1.75
13/16-16 W604-08-08 0.500 1.810 2.210 0.719 1.594 1.750 0.630 1.000 0.394 0.504 0.344 210 5/16-18x1.25
2-12 W604-24-24 1.500 3.700 4.410 1.437 3.125 2.880 1.180 2.115 1.260 0.689 0.656 225 5/8-11x2.25
