Home PageC6502 Series
Need Help with the installation?
Learn technical details.

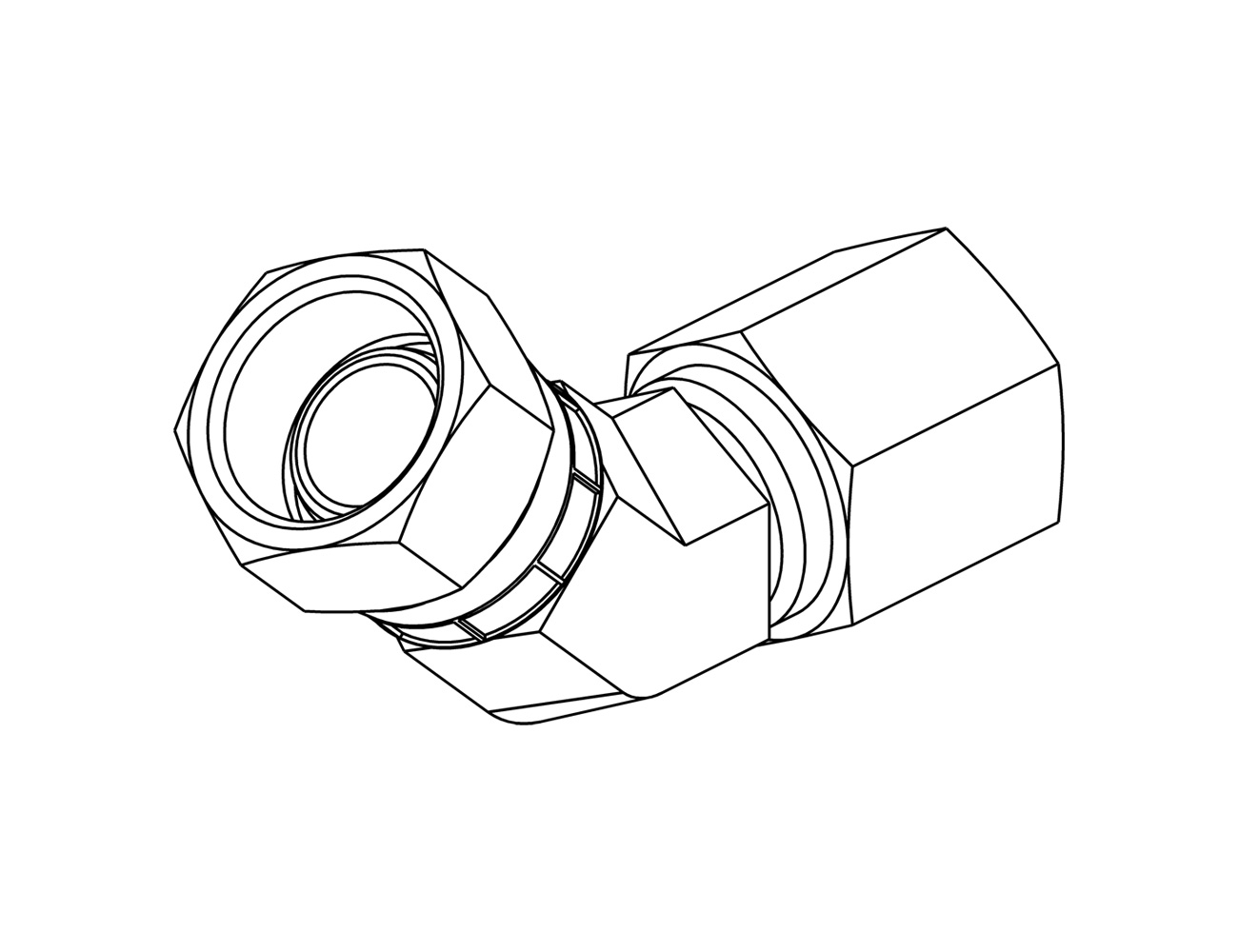

FLS-FLSX 45°
SAE 080321
| Item Number | HH Item Number | Tube OD | Flareless Bite Type | Flareless Swivel |
|---|---|---|---|---|
| C6502-04-04 | 4FLS-4FLSX45 | 1/4 | 7/16-20 | 7/16-20 |
| C6502-06-06 | 6FLS-6FLSX45 | 3/8 | 9/16-18 | 9/16-18 |
| C6502-08-08 | 8FLS-8FLSX45 | 1/2 | 3/4-16 | 3/4-16 |
| C6502-12-12 | 12FLS-12FLSX45 | 3/4 | 1 1/16-12 | 1 1/16-12 |
| C6502-16-16 | 16FLS-16FLSX45 | 1 | 1 5/16-12 | 1 5/16-12 |
| C6502-20-20 | 20FLS-20FLSX45 | 1 1/4 | 1 5/8-12 | 1 5/8-12 |
| C6502-24-24 | 24FLS-24FLSX45 | 1 1/2 | 1 7/8-12 | 1 7/8-12 |
